規格型號
|
PAC-D-20T |
PAC-D-30T |
PAC-D-40T |
PAC-D-50T |
PAC-D-60T |
PAC-D-80T |
|
開口高度 mm |
350 |
|||||
|
增壓缸規格 |
PAC-D-20T
|
PAC-D-30T |
PAC-D-40T |
PAC-D-50T |
PAC-D-60T |
PAC-D-80T |
|
總行程 mm |
150 |
|||||
|
增壓行程 mm |
10 |
|||||
|
模柄內孔 mm |
M12 |
M16 |
||||
|
電源 |
AC 220V,500/60Hz |
|||||
|
使用起源壓力Mpa |
0.4-0.7 |
|||||
|
重量 KG |
500
|
550 |
620 |
680 |
750 |
880 |
|
|
||||||
|
使用壓力MPa |
理論輸出力KN
|
理論輸出力KN |
理論輸出力KN |
理論輸出力KN |
理論輸出力KN |
理論輸出力KN |
|
0.4 |
136.6
|
19606 |
196.6 |
270.1 |
400.5 |
506.9 |
|
0.5 |
170.7
|
245.5 |
245.8 |
337.6 |
500.6 |
633.6 |
|
0.6 |
204.9
|
295 |
295 |
405.2 |
600.8 |
760.4 |
|
0.7 |
239
|
344 |
344 |
472.7 |
700.9 |
887.1 |
|

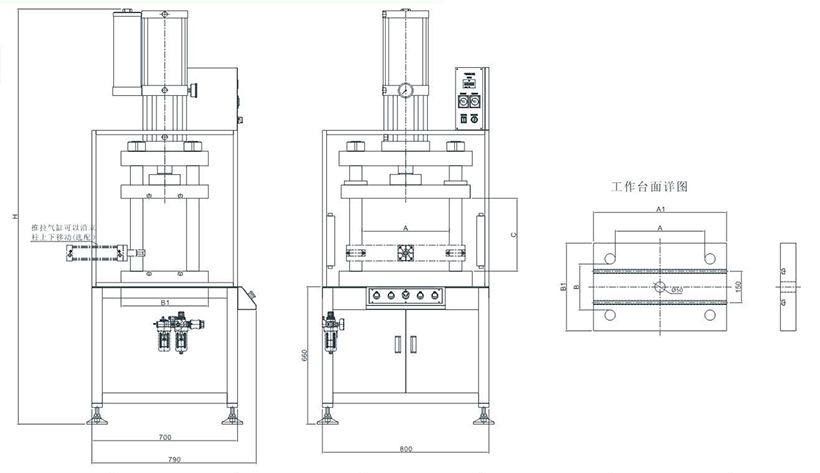

規格型號 |
A |
A1 |
B |
B1 |
C |
H |
|
PA-D-20T |
400 |
550 |
240 |
400 |
350 |
1820 |
|
PA-D-30T |
400 |
550 |
240 |
400 |
350 |
1910 |
|
PA-D-40T |
420 |
580 |
250 |
420 |
350 |
1950 |
|
PA-D-50T |
420 |
580 |
533 |
420 |
350 |
1990 |
|
PA-D-60T
|
450
|
630
|
270
|
450
|
350
|
2100
|
|
PA-C-80T |
450 |
630 |
270 |
450 |
350 |
2250 |
