規格型號
|
PAC-C-03T |
PAC-C-05T |
PAC-C-10T |
PAC-C-15T |
PAC-C-20T |
|
開口高度 mm |
250 |
||||
|
增壓缸規格 |
PAC-C-03T |
PAC-C-05T |
PAC-C-10T |
PAC-C-15T |
PAC-C-20T |
|
總行程 mm |
100 |
||||
|
增壓行程 mm |
5 |
||||
|
模柄內孔 mm |
25深45 |
30深45 |
|||
|
電源 |
AC 220V,500/60Hz |
||||
|
使用起源壓力Mpa |
0.4-0.7 |
||||
|
重量 KG |
240 |
270 |
320 |
420 |
460 |
|
|
|||||
|
使用壓力MPa |
理論輸出力KN |
理論輸出力KN |
理論輸出力KN |
理論輸出力KN |
理論輸出力KN |
|
0.4 |
19.5 |
39.2 |
61.3 |
100.4 |
136.5 |
|
0.5 |
24.4 |
49 |
76.6 |
125.5 |
170.7 |
|
0.6 |
29.3 |
58.8 |
92 |
150.6 |
204.8 |
|
0.7 |
34.2 |
68.6 |
1.7.3 |
175.7 |
238.9 |
|

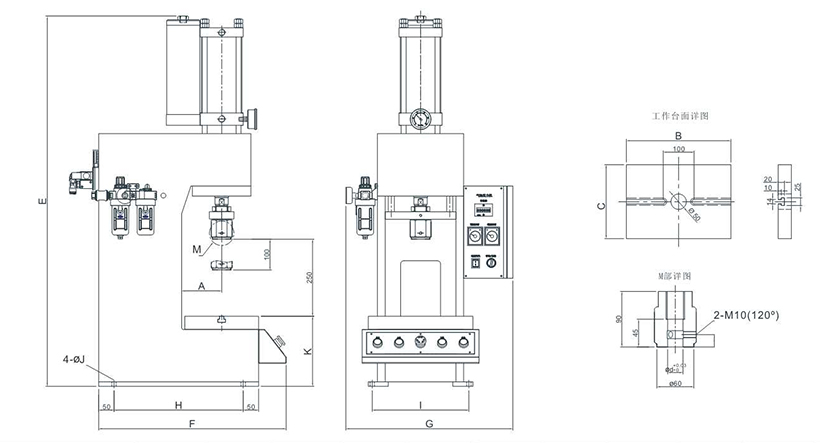

規格型號 |
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
|
PA-C-03T |
130 |
340 |
240 |
25 |
1136 |
570 |
513 |
380 |
284 |
14 |
198 |
|
PA-C-05T |
130 |
340 |
240 |
25 |
1164 |
590 |
513 |
400 |
284 |
14 |
203 |
|
PA-C-10T |
130 |
340 |
240 |
25 |
1203 |
610 |
543 |
420 |
314 |
14 |
228 |
|
PA-C-15T |
150 |
380 |
280 |
30 |
1277 |
680 |
593 |
490 |
370 |
16 |
258 |
|
PA-C-20T |
150 |
380 |
280 |
30 |
1346 |
680 |
593 |
490 |
370 |
16 |
258 |
